20087-0

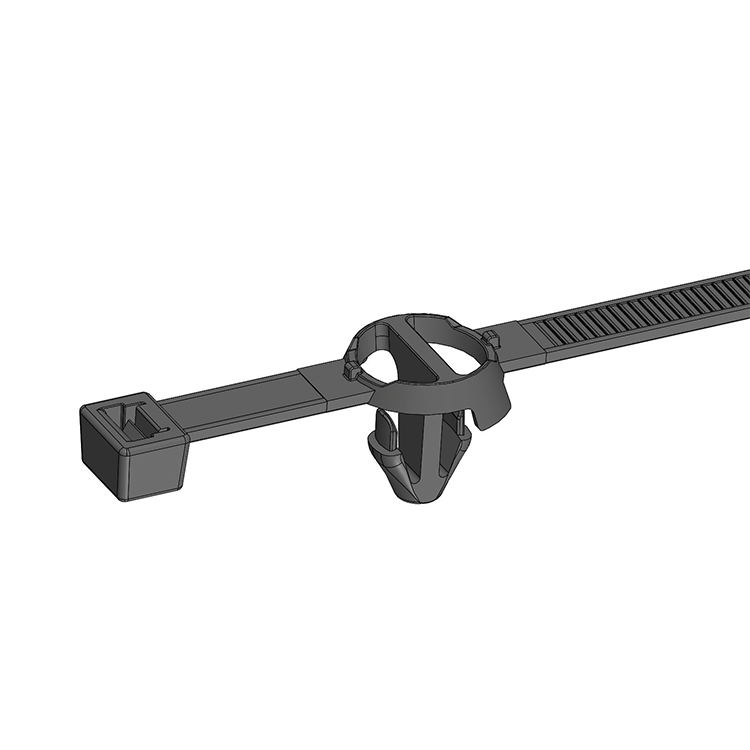

90 DEG.ARROW TIE,BHS

Building on our oval/slot arrow family of products, we offer a variety of offset arrows.These allow users to guide harnesses, tubes and hoses away from the mating hole when there is interference from other components or harnesses.

Attribute
Specifications
Application Punched Hole
Fastener Type Arrow
Mating Feature Arrow Hole
Mount Size Ø 6.35 - 6.85 mm
Bundle Diameter 0.25 - 1.75" (6.3 - 44.5 mm)
Maximum Panel Thickness 3.5 - 5.5 mm
Operating Temperature -40 to 125°C / -40 to 257°F
Resin PA66 IMHS
Color Black
Insertion Force (lbf)

Max.    - 10

Typical - 5
Retention Force (lbf)

Min.     - 50

Typical - 68
Min. Loop Tensile Strength
 50 lbf. (222 N)
